We have two new temperature sensors in our portfolio. Temp-1Wire Pt100 and Temp-1Wire PT100 Frost are both temperature sensors with Pt-100 probes. They offer high accuracy over a wide temperature range, long life, and IP67 protection.
The HW group monitoring system with these sensors can be used for regular audits of measured values as well as for monitoring critical temperatures and alarming.
Temp-1Wire Pt100 and Temp-1Wire PT100 Frost are replacing old Temp 1Wire Pt1000 and Temp 1Wire PT1000 Frost sensors, that are discontinued.
Temp-1Wire Pt100
Temperature sensor Temp-1Wire Pt100 is used for temperature ranges from -50 °C up to 200 °C for industrial applications. Internal Pt100 probe offers high accuracy over a wide temperature range, long life, and IP67 protection. The probe has RJ11 3m cable.
Application & usage
- Outdoor temperature monitoring
- Measuring temperature in the pharmaceutical and food industry
- Temperature monitoring in fridges and freezers
- Measuring temperature in agriculture

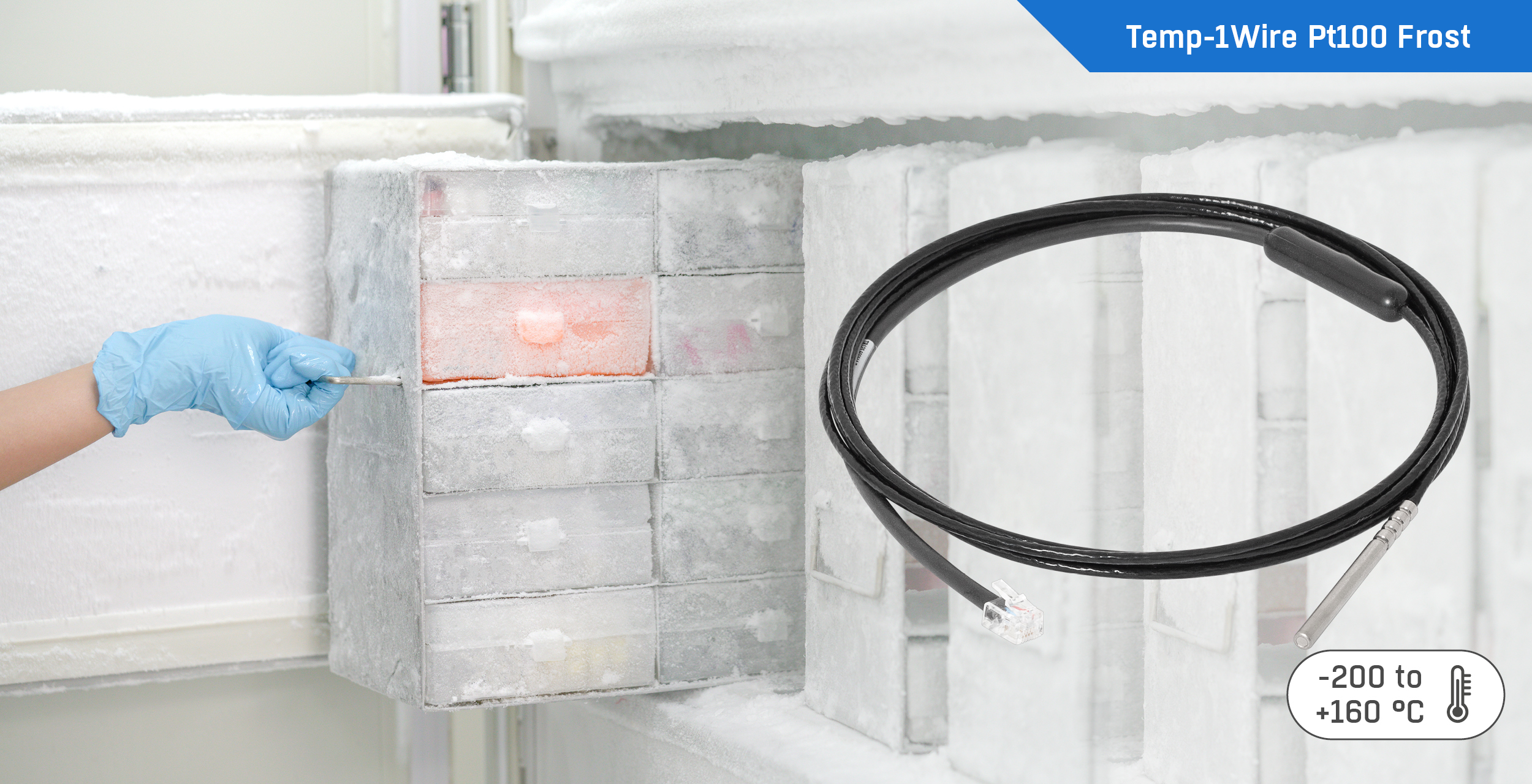

Temp-1Wire Pt100 Frost
Temperature sensor Temp-1Wire Pt100 Frost is a low temperatures sensor (-200 °C to 160 °C) based on Pt-100. This sensor is specially designed for extremely cold temperatures. The internal probe offers high accuracy over a wide temperature range, long life, and IP67 protection. The probe has RJ11 3m cable.
Application & usage
- Outdoor temperature monitoring
- Measuring temperature in the pharmaceutical and food industry
- Temperature monitoring in fridges and freezers (perfect solution for storing temperature-sensitive drugs)
- Measuring temperature in agriculture
Temp-1Wire Pt100 and Temp-1Wire PT100 Frost sensors are connected directly to the 1-Wire bus without the need for an additional converter. Sensors can be connected to all HWg devices with RJ11 sensor port, that is Poseidon2, Ares 12, NB-2x1Wire, SD-2x1Wire, STE2 r2, HWg-STE2. When the temperature gets out of the safe level, the system can immediately react by sending an alarm (e-mail, SMS, Call) or, for example, switching on an A/C unit. Device management, graphs, or reports are available thanks to the SensDesk Technology portal.
