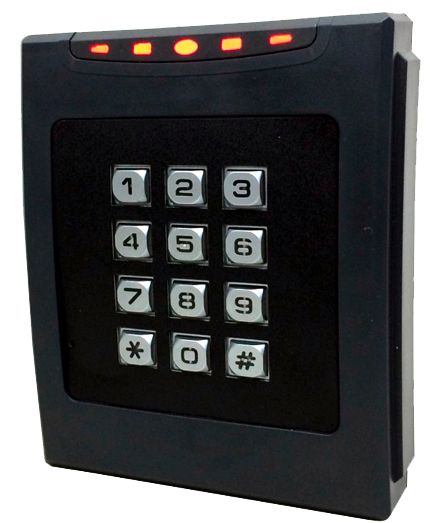

Gigatek DF750K

MIFARE DESFire sector series readers are available with metal keypad. Communication interfaces available are RS232 or Wiegand. Serves as a versatile configurable reader bundled with a utility developed by Promag engineering teams. Certified to IP 66 to secure the critical installation environment. Has also passed the R&TTE, FCC approval. Protected by mutual three pass authentication, DES & 3 DES MACing/Enciphering. The inside buzzer and LED can be configured easily using the included utility.
Accessories producer:
Promag Europe
Tested withFirmwareResult


RJ45 norm B color Funkction DF750K
white/orange 1 - out 1 Brown
orange 2 - out 2 x
x 3 – Txd x
blue 4 – GND black
x 5 - in 1 x
green 6 - D0/Rxd green
white/brown 7 - +12V red
brown 8 - D1 white
