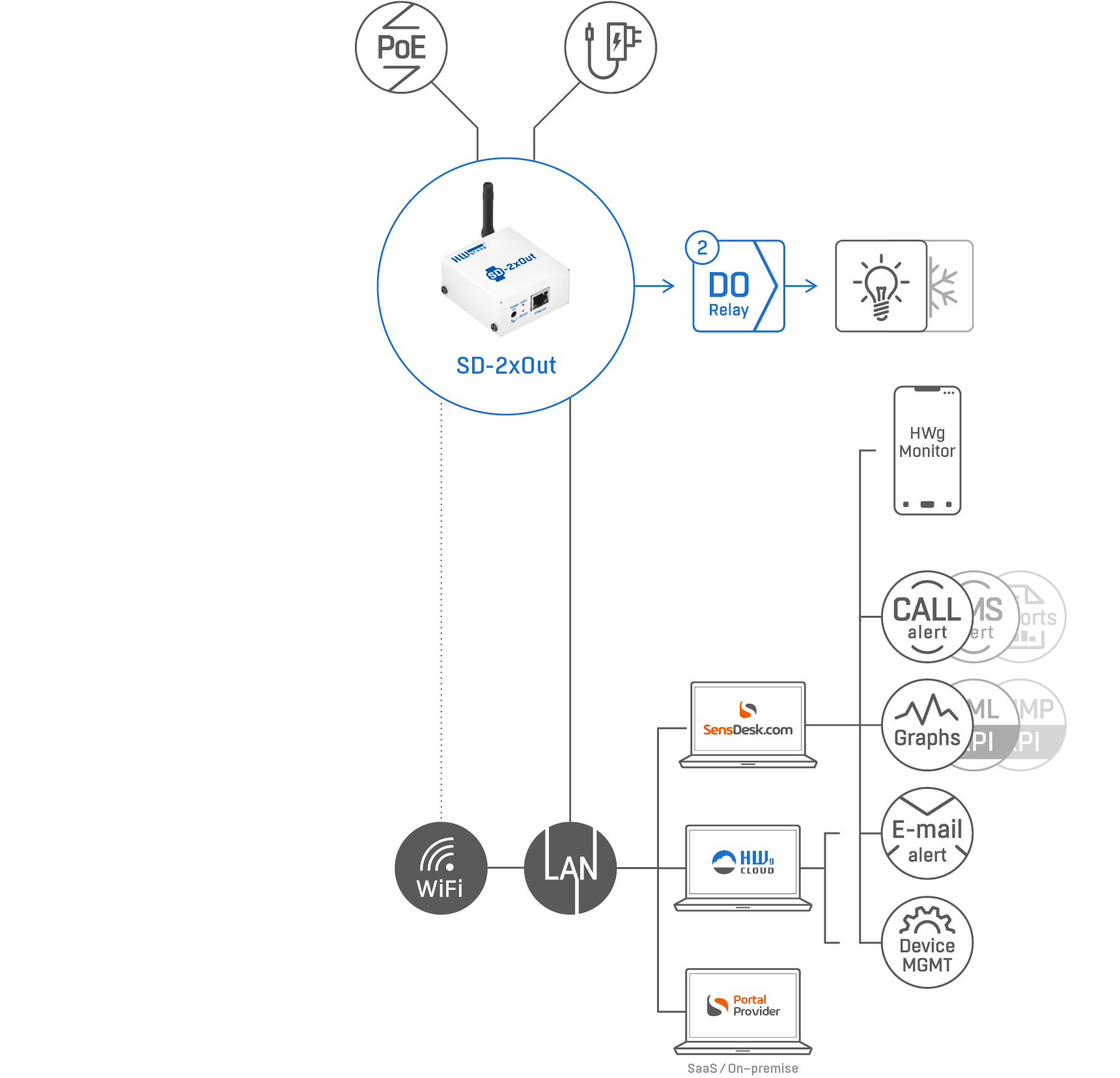

SD-2xOut: 2x DO (Relay output) controlled from the portal (LAN and WiFi)

The SD-2xOut device features two digital outputs that can be easily controlled using the SensDesk portal.

For configuration, SD-2xOut features a built-in web server and WiFi connectivity. The device can be monitored remotely over the Internet using any SensDesk Technology portal and the SensDeskMobile app.

Using the SensDesk portal, the outputs can be controlled directly in the portal web interface. The outputs can be controlled either manually, or with a condition (local or remote). For details about controlling the outputs, see the application notes.



Features:
  • Ethernet and WiFi connectivity
  • External Power adaptor 5V / PoE
  • Embedded WEB server (WiFi setup)
  • Simple installation, supports DHCP
  • Fast & simple installation on the site (Junior only)
  • Portal for device management required (HWg-cloud.com as default)
  • Free portal service (HWg-cloud.com) for up to 20 devices available
  • Paid portal services available (any SensDesk Technology portal)

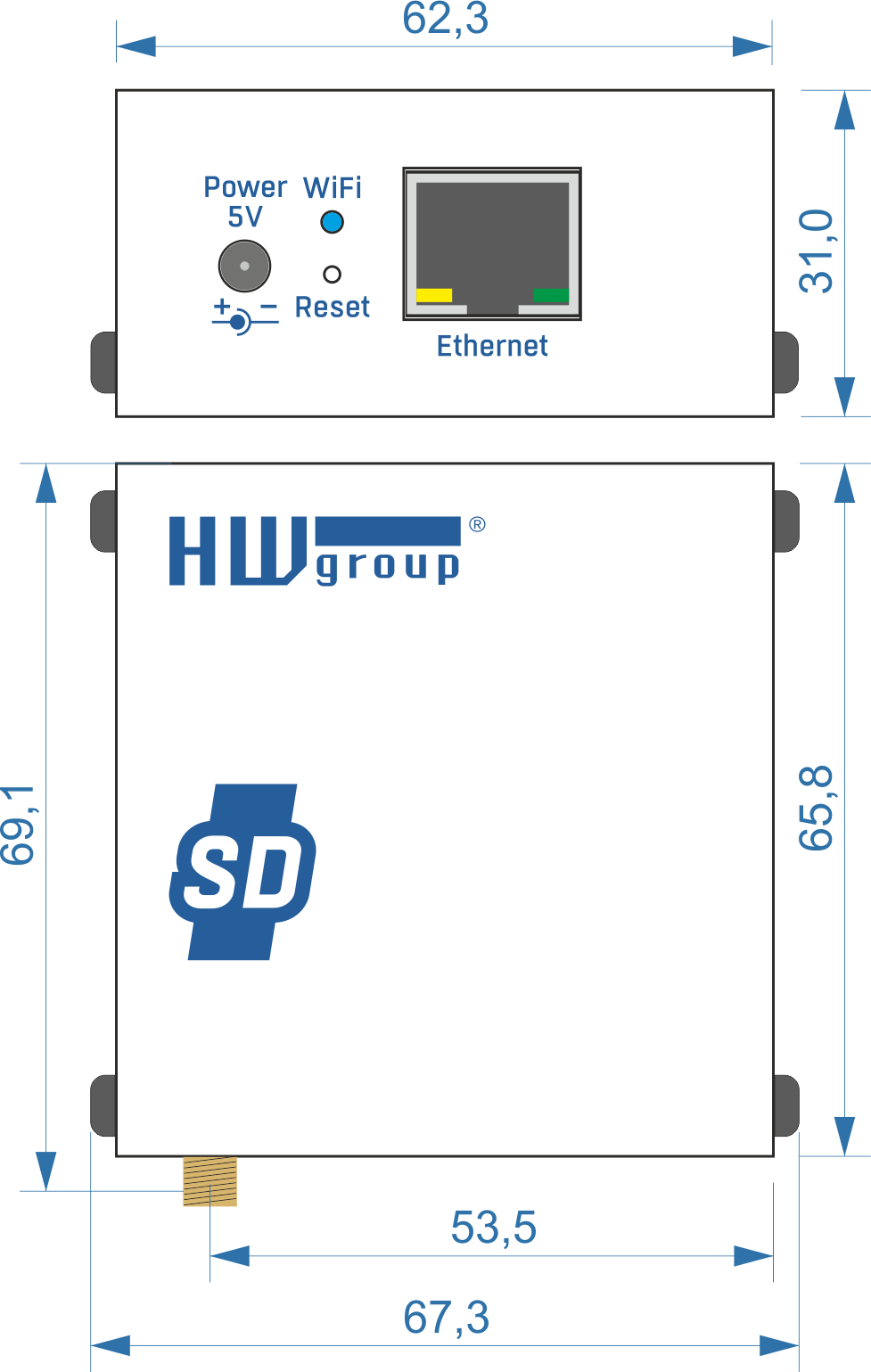

  • Metal housing, DIN, and rack mount available
Applications and usage:
  • Manual or automated control of appliances and customer’s equipment
  • Heating control (thermostat mode)
  • Pumping water into a tank if the level drops
  • Lighting up warning lights or sounding a warning horn

Horizontal menu






User benefits



  • Users can remotely manually switch On/Off each output from the portal’s web GUI.
  • The Portal (Action) can switch On/Off each output based on any other sensor’s value.
  • Device installation is fast & easy even for “Junior users”.
  • The Portal can alert users when the SD device is not powered.
  • Free cloud available (HWg-cloud.com) with device management.
  • HWg Monitor mobile App available





Portal is required

All SensDesk Technology logoIoT Monitoring Devices have to be connected to any SensDesk Technology-based portal (SaaS) in order to work properly.

SensDesk Technology is a portal solution from the HW group to manage remote sensors and devices (only for HW group products). Portals offer a central overview of all the values and provide a variable combination of features like sending the alarms, reporting, history records, outputs into the Open API, etc.


There are several portals available. The manufacturer provides HWg-cloud.com and SensDesk.com, 3rd party companies provide more than 10 other portals. Users can migrate the device between any available SensDesk Technology portals.

 u

HWg-cloud.com: Limited & Free portalHWg-cloud.com portal features - Portal Providers icons

  • the default pre-configured portal option
  • provided by the device manufacturer
  • sends email alerts and offers basic remote device management
  • advanced features of SensDesk Technology are not available
  • You can migrate your devices from HWg-cloud.com to any other SensDesk Technology portal at any time





SensDesk.com: Paid portal service with advanced featuresSensDesk.com portal features icons

  • Several subscription plan options
  • SMS / Voice call alerts to any mobile phone
  • Graphs / MultiGraphs (data history)
  • PDF reports
  • Email alerts/alarm escalation
  • History log
  • Open API: All sensor values are available via XML / SNMP protocols





Local portals by Portal providersSensDesk Technology portal features - Portal Providers icons

  • portals based on SensDesk Technology run by 3rd party providers
  • local languages and support
  • various mix of free/paid services
  • various commercial names





Why do you need a portal?

  • Using the portal makes the IoT monitoring devices easy to install even by junior local staff. To install the IoT devices you don´t need any experts on the site.
  • The portal can then send alerts and provides remote device management. Portal is one place with all your sensors & graphs overview, reporting, Open API, ...
  • Even the default free-of-charge version of the portal (Hwg-cloud.com) can alert you by email when the device is disconnected / sensor value alarm.
  • The price of the SensDesk.com portal service is around 15 % of the hardware cost per year.



All your sensors are in your pocket 24/7Mobile App HWg Monitor icon

You can have a display with all your sensor values in your pocket with you 24/7. Check HWg Monitor mobile app. The app can be running on your phone, on the Android TV, or on the Tablet installed on the wall.



AlertingAlert icon

SensDesk.com can immediately alert you by SMS or Voice call to your mobile phone in the case of an Alarm situation. If the time is critical, every second counts. The immediate reaction to an alarming situation can be also responded to by closing/opening a remote relay output, which can for example turn on a siren. Quick alerts lower the risk of costly damages in case of an Alarm. Alerts from the portal can escalate to higher intensity or to another person if the problem persists.



Sensor values in MultigraphsMultigraph icon

Multigraphs can display multiple sensor values from different kinds of sensors in one graph. That offers a situation overview of a remote site, significant fluctuance of sensor values is visible at first sight. It is popular for comparing time events. SensDesk.com system is also showing sensor value graphs that alert you when the device is not working or any sensor is out of defined limits.

For an example of working with charts in SensDesk, see the application note.


PDF reportsreport icon

You can easily create comprehensible reports with graphical representations of sensor values in one or in a number of locations. You can create reports in PDF (CSV) periodically. Reports can be printed & clicked on the invoice for your customer. Reports for pharmaceutical / other production (HACCP) are possible.




HistoryHistory icon

Thanks to the history log you can easily compare your historical data.





Open API Open API icon

You can connect the data from SensDesk.com to any other system. The Portal user account (all connected sensors) is accessible by Open API (SNMP, XML).

  • A list of all the sensors / current values can be downloaded in XML format (HTTP get).
  • All the values can be read via SNMP v1 / v3 protocol.





The number of Dashboards, Multigraphs, and Reports is limited by the subscription plan as well as the length of the history log, check the plans: www.sensdesk.com
