Water Leak Detection uses a WLD sensing cable that detects water along the entire cable length and a WLD device (WLD2 / NB-WLD / ...) that can communicate an alarm in case of water occurrence (a few drops is enough). Prolong non-sensitive cable for the WLD system inexpensively extends the length of the WLD zone. WLD system can combine sensing and non-sensing segments of the cable to make it a cost-effective solution.
Prolong cable is part of HWg monitoring eco-system (sensors + devices + SensDesk Technology portal), that gets you long-term reliable alerts, graphs, PDF reports, open API, remote device management, etc. The right Water Detection and early alert are essential in a lot of businesses, for example, data centers, etc. Water Leak Detection System from HW group is a complex solution developed to protect your facility against costly water damage that might threaten you.
>> Read the article about Water Leak Detection (WLD) System.
- For use with WLD2, NB-WLD, SD-WLD and Sensor WLD Relay 1W-UNI
- Prolong non-sensitive cable is delivered in 5 m lenght
- Prolong cable together with sensing cable can be extended up to 185 m long
- Prolong cable for WLD Sensing cable.

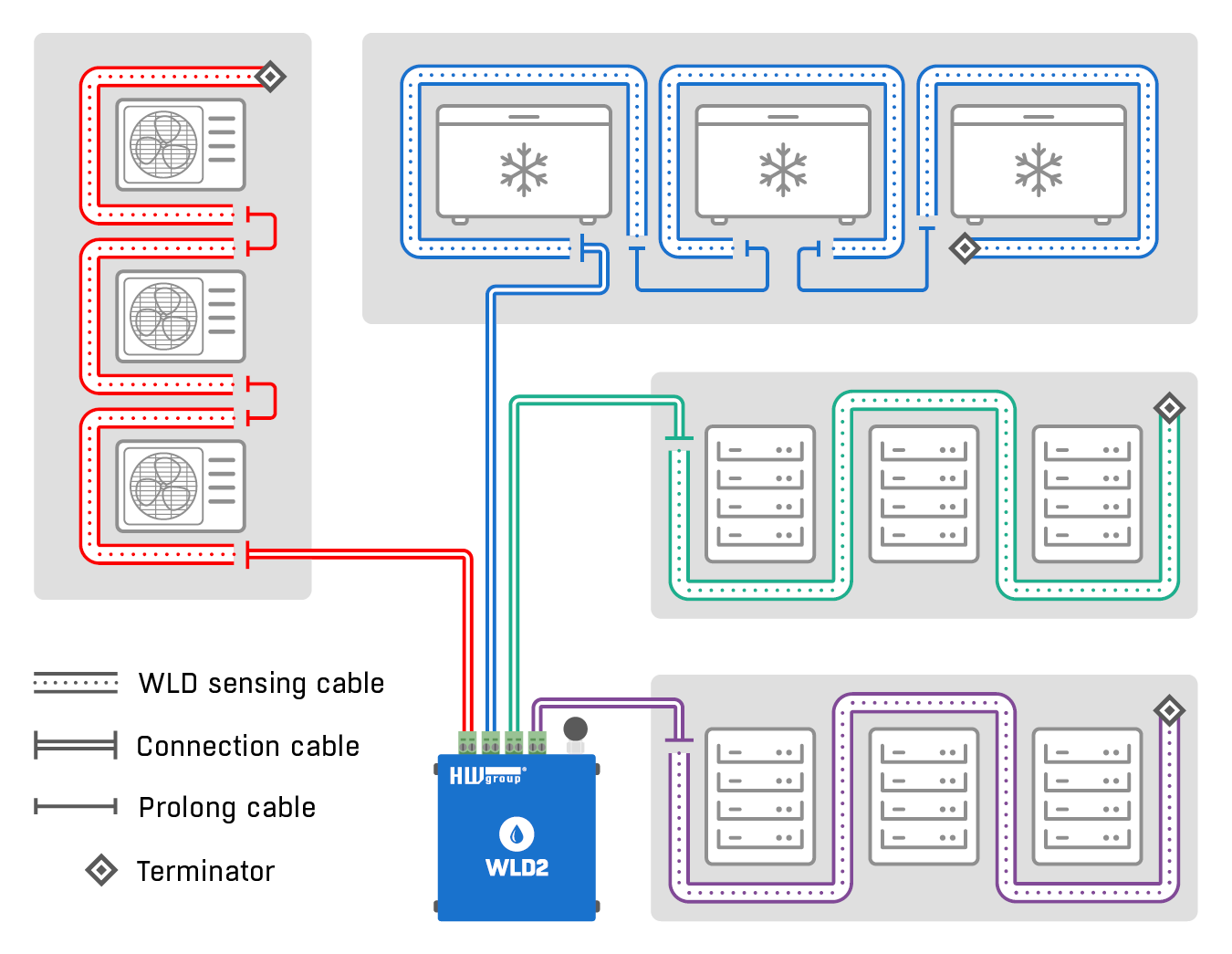

WLD cable components
WLD sensing cable is supplied in lengths of 2 m, 10 m 50 m. The length of the sensing cable in 1 zone can be max. 85 m. The cable can be extended with the prolong non-sensing cable up to 185 meters/zone in total (60 m for NB-WLD). Terminator is required at the end of the zone (included in the Connection cable).
- Connection cable - 2m (Green terminal block, 2m, Terminator)
- WLD Sensing cable A - 2m / 10m / 50m
- WLD prolong cable A - 5m
