NB-WLD: 1 zone Water Leak Detector to the portal (NarrowBand IoT)

NB-WLD is a remote monitoring unit with one WLD zone (Water Leak Detection), internal battery, and NB-IoT (NarrowBand IoT) connectivity (sim card can be included). Water is detected along the entire length of the WLD sensing (detection) cable.

NB-WLD is powered by an internal battery or an external power adaptor. There is 1 zone of WLD sensing cable (total wiring length up to 60m with non-sensing prolong cable included).

Thanks to fast detection of the first water drops anywhere on the WLD sensing cable can NB-WLD prevent substantial damages to the infrastructure.

NB-WLD is an IoT Monitoring device, which means it has to be connected to any SensDesk Technology-based portal. All the SMS / Email alerts, PDF reports, and central device management is realized from the portal.

Manufacturer provides limited free of charge portal service (HWg-cloud.com) and paid service (SensDesk.com), check the Portal providers for other available portals.

Features:
  • One sensing zone detection input for WLD sensing cable (Type A)
  • Narrowband IoT (NB-IoT) connectivity
  • In default NB-IoT simcard is included (3 years connectivity)
  • Internal battery (non-rechargeable) with up to 3 years lifetime
  • External 5V DC power
  • Compatible with any SensDesk Technology portals
  • Easy setup to the portal with a few clicks (HWg-cloud in default)
  • Free portal (HWg-cloud) available with simple email alerting
  • Metal housing, DIN and rack mount available
Applications and usage:
  • Detection of water leaking from pipes (WLD sensing cable can run alongside the pipes)
  • Liquid penetration from the next room (sensing cable laid alongside the walls)
  • Water in Datacenters (under raised floors / above suspended ceilings)
  • Detection of water leaks under A/C outlets
  • Liquid detection in buildings

Horizontal menu

Liquid is detected along the entire length of the WLD sensing cable.WLD sensing cable

WLD sensing cable detects liquid along the entire length of the sensing cable. Even a few drops of water, ethylene glycol, or other conductive liquid trigger the alarm. WLD sensing cable is re-usable (cable can be cleaned, dried & used again).

WLD sensing cable features

  • No Bend limit: WLD sensing cable is not limited by any bending radius.
  • No Twist limit: WLD sensing cable can be twisted as any other electrical cable.
  • No Grip limit: Water detection functionality is not limited by point pressure within a reasonable range.

 No Bend limit  No Twist limit  No Grip limit

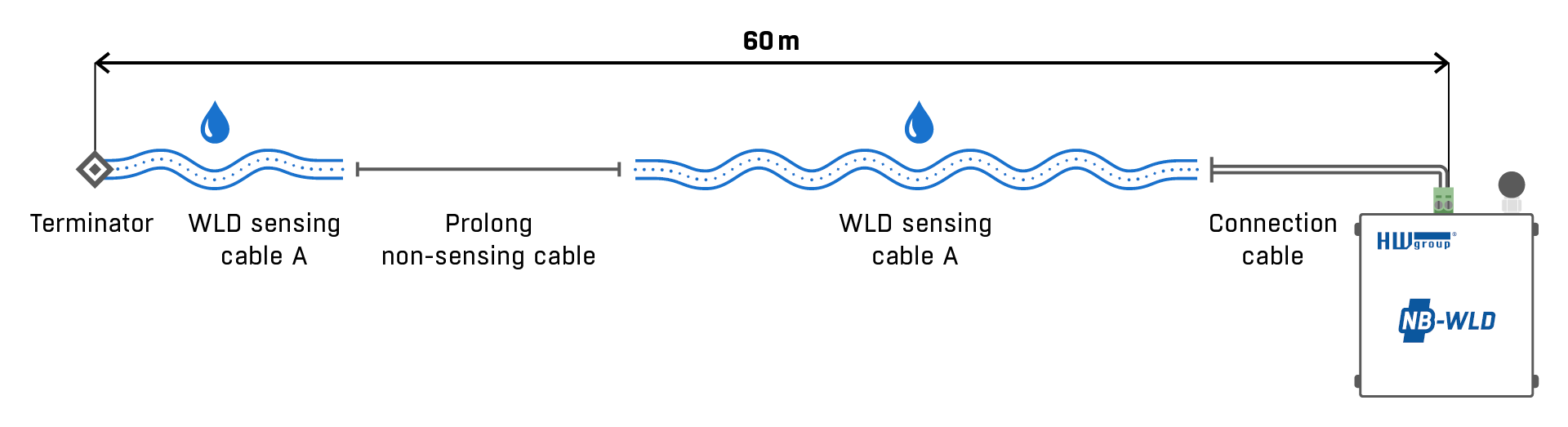

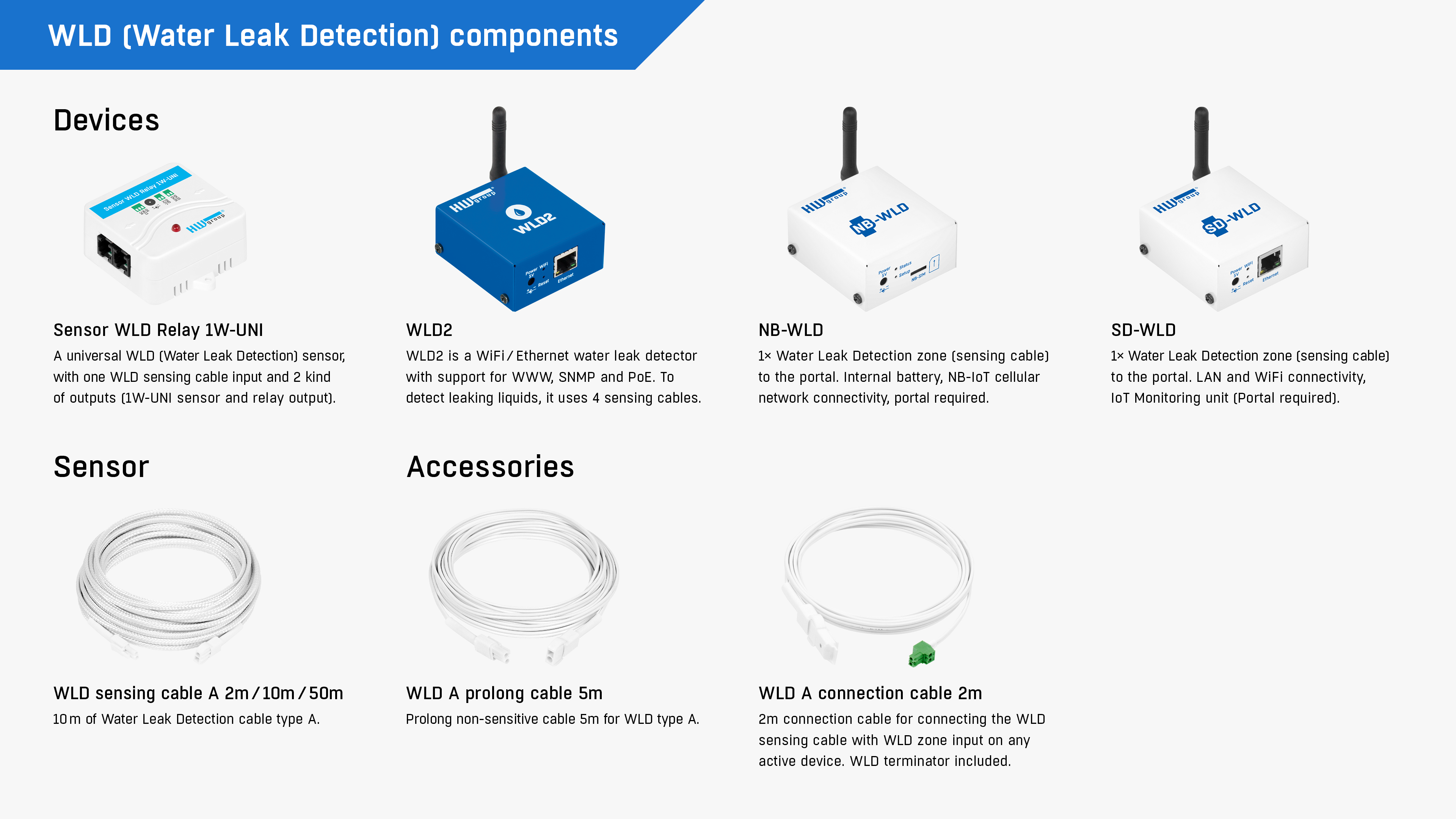

WLD cable components

WLD sensing cable is supplied in length from 2m to 50m and can be extended by a non-sensing WLD prolong cable.

NB-WLD supports connection of 1 sensing cables. WLD zone can consist of up to 60m of cable (sensing and prolong together).

Water Leak Detection system and spot water detection from HW group

WLD sensing cable detects liquid along the entire length of the sensing cable across the extent area and even the smallest amount of liquid can send the alert. Thanks to the early alert (reaction time 1-5 minutes) significant damages to IT or other infrastructure can be avoided.

Spot water detector detects water only in one spot and have to be entirely flooded. This means you will not be alerted immediately when a water pipe breaks but only after the area is considerably flooded.

Water Leak Detection with sensing cable is reliable and you get an early alert. You can quickly react and avoid costly damages.Spot detection is basicaly a swimming invitation. Detector detects water in one spot only and has to be flooded.

Do you see the difference?

Proper Water Leak detection with a sensing cable helps you avoid costly damages thanks to an early alert that is triggered by the first few drops of liquid. Learn more about the difference between the WLD system with sensing cable and water spot detection in the application note.

 >> WLD (Water Leak Detection) with Sensing cable versus Spot water detection

Usage scheme



NB-IoT networkNB-IoT network connectivity

  • NB-IoT (NarrowBand IoT) cellular network is operated by standard mobile operators, but it's a different technology than GSM, LTE, or Cat-M1.
  • Benefit of the NB-IoT technology is the low power consumption of the device, so devices can be operated for months & years from the battery.

Prepaid NB-IoT SIM card included

NB-IoT SIM cardThe most popular "subscribed" package contains 3 years prepaid NB IoT SIM card preconfigured by HW group company. Connectivity is provided by Vodafone global, the device can be used in most countries. The default preconfigured portal is HWg-cloud.com for remote device management & configuration. Devices can be migrated to any other SensDesk Technology portal.

3rd party SIM card for NB-IoT

You can use your own sim card for NB-IoT network connectivity. But! Don´t forget that:

  • it's different technology & frequencies than LTE. You really have to use NB-IoT Simcard
  • Devices have to be specifically configured for your own sim card, contact us before you purchase it
  • Data can be delivered to your own hosted installation of the SensDesk portal. It's recommended for projects with 200+ devices. Contact us for details.

Portal is required SensDesk Technology logo

All IoT Monitoring Devices have to be connected to any SensDesk Technology-based portal (SaaS) in order to work properly.

The SensDesk Technology is a portal solution from the HW group to manage remote sensors and devices (only for HW group products). Portals offer a central overview of all the values and provide a variable combination of features like sending the alarms, reporting, history records, outputs into the Open API, etc.


There are several portals available. The manufacturer provides HWg-cloud.com and SensDesk.com, 3rd party companies provide more than 10 other portals. Users can migrate the device between any available SensDesk Technology portals.



HWg-cloud.com: Limited & Free portalHWg-cloud.com portal features - Portal Providers icons

  • the default pre-configured portal option
  • provided by the device manufacturer
  • sends email alerts and offers basic remote device management
  • advanced features of SensDesk Technology are not available
  • You can migrate your devices from HWg-cloud.com to any other SensDesk Technology portal at any time






SensDesk.com: Paid portal service with advanced featuresSensDesk.com portal features icons

  • Several subscription plan options
  • SMS / Voice call alerts to any mobile phone
  • Graphs / MultiGraphs (data history)
  • PDF reports
  • Email alerts/alarm escalation
  • History log
  • Open API: All sensor values are available via XML / SNMP protocols





Local portals by Portal providersSensDesk Technology portal features - Portal Providers icons

  • portals based on SensDesk Technology ran by 3rd party providers
  • local languages and support
  • various mix of free/paid services
  • various commercial names





Why do you need a portal?

  • Using the portal makes the IoT monitoring devices easy to install even by junior local staff. To install the IoT devices you don´t need any experts on the site.
  • The portal can then send alerts, provides remote device management. Portal is one place with all your sensors & graphs overview, reporting, Open API, ...
  • Even the defaul free of charge version of the portal (Hwg-cloud.com) can alert you by email when device disconnected / sensor value alarm.
  • Price of the SensDesk.com portal service is around 15 % of the hardware cost per year.



All your sensors are in your pocket 24/7Mobile App HWg Monitor icon

You can have a display with all your sensor values in your pocket with you 24/7. Check HWg Monitor mobile app. The app can be running on your phone, on the Android TV, or on the Tablet installed on the wall.



AlertingAlert icon

SensDesk.com can immediately alert you by SMS or Voice call to your mobile phone in the case of an Alarm situation. If the time is critical, every second counts. The immediate reaction to an alarming situation can be also responded to by closing/opening a remote relay output, which can for example turn on a siren. Quick alerts lower the risk of costly damages in case of an Alarm. Alerts from the portal can escalate to higher intensity or to another person if the problem persists.



Sensor values in MultigraphsMultigraph icon

Multigraphs can display multiple sensor values from different kinds of sensors in one graph. That offers a situation overview of a remote site, significant fluctuance of sensor values is visible at first sight. It is popular for comparing time events. SensDesk.com system is also showing sensor value graphs that alert you when the device is not working or any sensor is out of defined limits.

For an example of working with charts in SensDesk, see the application note.


PDF reportsreport icon

You can easily create comprehensible reports with graphical representations of sensor values in one or in a number of locations. You can create reports in PDF (CSV) periodically. Reports can be printed & clicked to the invoice for your customer. Reports for pharmaceutical / other production (HACCP) are possible.




HistoryHistory icon

Thanks to the history log you can easily compare your historical data.





Open API Open API icon

You can connect the data from SensDesk.com to any other system. Portal user account (all connected sensors) is accessible by Open API (SNMP, XML).

  • A list of all the sensors / current values can be downloaded in XML format (HTTP get).
  • All the values can be read via SNMP v1 / v3 protocol.





The number of Dashboards, Multigraphs and Reports is limited by the subscription plan as well as the length of the history log, check the plans: www.sensdesk.com
