Perseus Energy 285

Perseus Energy 285 is a DIN rail LAN and LTE solution for remote energy monitoring and control applications with M-Bus Master. Connect external physical sensors (°C, %RH, A, V, …), Detectors (relay / dry contact) or WLD (Water Leak Detection) sensing cable. 3rd party meters (sensors) can also be connected via LAN or Modbus/RTU. LTE backup connectivity allows the device to stay operational in case of an Ethernet outage.

Perseus Energy 285 combines data from external physical sensors / detectors / meters with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.

SMS, Call, Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).

Perseus Energy 285 can be connected to the Portal (SensDesk Technology). Together with the Portal it is a powerful solution for professional applications.

A unique feature of all Perseus products is the Meters API. That means that Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.

The Perseus Energy 285 unit has a built-in LTE modem that serves as an SMS gateway for Perseus itself as well as other connected HW group devices, and also provides back up connectivity to the Portal.

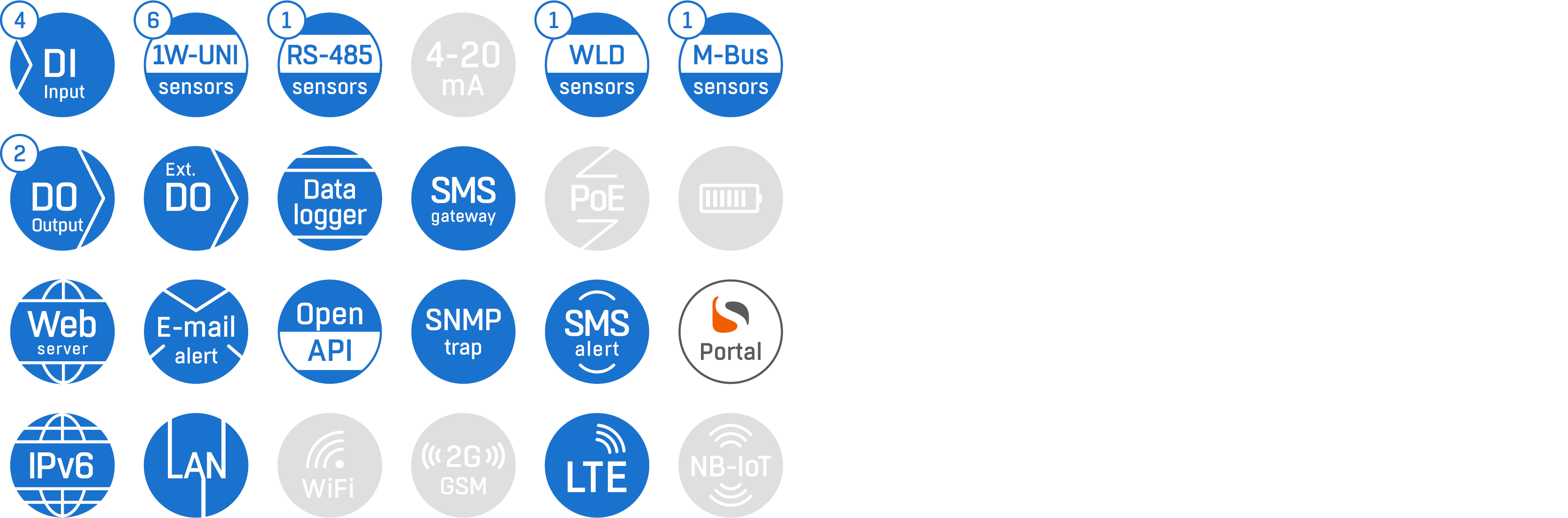

Features:
  • Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
  • LTE: Global
  • 6xRJ11 port - max. 2 external sensors 1-Wire UNI per port
  • RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
  • RS-485 (Modbus/RTU): 1x terminal block
  • M-Bus Master: 1x terminal block
  • WLD: 1 zone for external Water Leak Detection sensing cable
  • DO (Digital Outputs): 2x DO (relays)
  • DI (Digital Inputs): 4x DI (dry contact)
  • Detectors: Smoke, door contact, fan failure detector, power presence, etc
  • Device Alerts: SNMP trap, email, SMS / Calls
  • Portal Alerts: Email, SMS / Calls, Device Invalid Alert
  • Open API: SNMP, XML, Modbus/TCP, MQTT
  • Professional product: IPv6, SNMP Traps, SNMP v3
  • Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
  • Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
  • Data processing: Condition & Actions, Virtual sensors, Scheduler
Applications and usage:

Typical Applications:

  • Remote site data concentrator of all local sensors / meters
  • Remote technical room monitoring
  • Boiler room equipment monitoring
  • Industrial machinery monitoring
  • Greenhouse / food storage / pharmaceutical warehouse monitoring
  • Remote infrastructure monitoring



Horizontal menu

Perseus Energy 285 is DIN rail mount device for environmental monitoring of a site of any size and complexity. Up to 100 external meters (and sensors) with 1000 values (variables) can be connected.

Within one DIN rail unit there are 6 1W-UNI (RJ11) ports, 4 DI (Digital Inputs) with S0 pulse counters, RS-485 (Modbus/RTU), one WLD (Water Leak Detection) zone input, an M-Bus Master input, and 2 DO (Relay Outputs).

Perseus Energy 285 can only be powered from 230V.

The combination of the RS-485 physical interface on the Perseus Energy 285, M-Bus Master and Modbus-RTU Meters API allows data to be read from third party electricity/gas/water meters, UPS or air conditioning products.

Perseus Energy 285 has a WLD zone input and 2 relay outputs that can be controlled via the device’s interface or according to the value of a connected sensor or detector, for example to control air conditioning, ventilation, automatic doors, etc.

Alerting options

Typical applications include remote infrastructure monitoring and alerting. From simple high temperature alerts to advanced alerts (2 out of 5 sensors exceeded limit or are inaccessible).

Mobile App can be used to display the status of all connected meters via LAN directly or via SensDesk.com Portal.

Internal LTE modem can be used to inform the Portal in case of power failure (email / SMS alerting from the Portal, including device and sensor invalid states), or to serve as the SMS/Call alerting gateway for all HWg devices in the local network.

Standalone monitoring

  • Email alert can be sent from the device (requires SMTP server)
  • SMS/Call alert can be sent from the device using LTE modem
  • Perseus Open API is available (SNMP, Modbus/TCP, MQTT, …)

Mobile App: HWg Monitor

  • Wall-mounted tablet showing all temperatures in the room / state of detectors
  • Data input: LAN devices / Portal user account
  • Android and iOS versions
  • All sensor values on one screen
  • Can be used as a sensor reading display in your pocket / on the wall

Using free of charge Portal service (HWg-cloud.com):

  • Perseus 285 can be easily connected via LAN
  • Email alert with high/low temperature can be sent from the Portal (long-term reliable)
  • Device Invalid (disconnected) email alert is available from the Portal
  • One value graph with short history is available
  • Alarm escalation is available (email only)
  • Remote relay output switching based on sensor
  • Central alerts overview & management
  • Free of charge service from HW manufacturer

Using paid Portal service (Portal providers):

  • All features from HWg-cloud.com are available
  • Email, SMS, Voice call alerts (from the Portal)
  • Virtual sensors in the Portal (average over several sensor, …)
  • Multigraphs with several years of history
  • User account API: SNMP or XML
  • Reports (PDF)
  • Multi-user accounts
  • SensDesk.com (SaaS service) can be used (or any Portal Provider)
  • SensDesk Portal On-Premise - You can run your own portal on your server
